How to design a polarized LED street light lens?

Designing a polarized street light lens involves careful consideration of various optical and mechanical factors. Here are the key steps and factors to pay attention to in the optical design of such a lens:

1. Understand the Requirements:

Define the specific requirements of the street lighting application, including the desired light distribution, beam angle, and polarization angle.

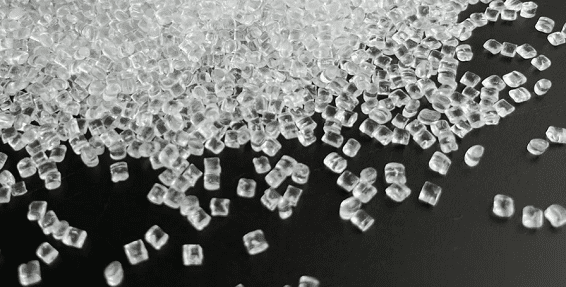

2. Select Suitable Materials:

Choose appropriate optical materials that offer good light transmission and can withstand outdoor environmental conditions, including UV resistance and thermal stability. (PC material is the choice of many customers)

3. Polarization Orientation:

Determine the desired polarization orientation. Polarized lenses are designed to filter and transmit light with a specific polarization angle. The orientation should be chosen to minimize glare and unwanted reflections in the target area.

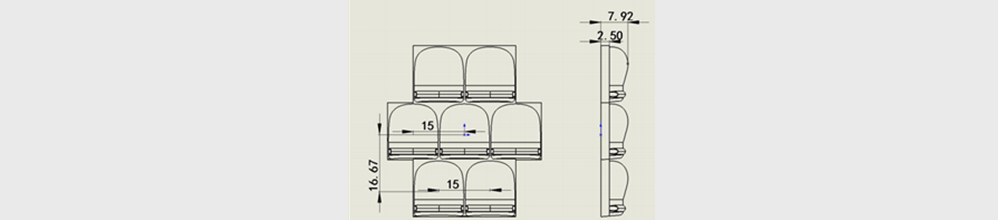

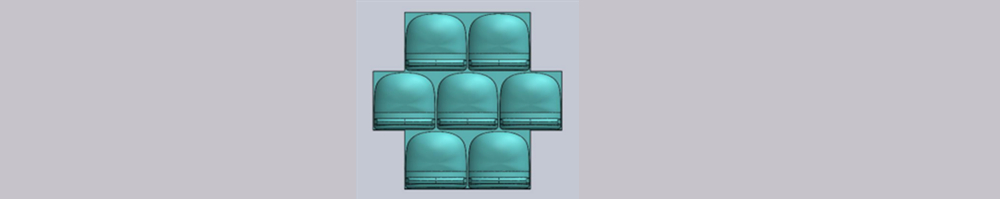

4. Optimize Lens Shape:

Design the lens shape to control the direction of light and achieve the desired light distribution pattern. The lens may be designed with multiple facets, prisms, etc.

5. Surface Coatings:

Consider applying anti-reflective or polarization coatings to the lens surfaces to further control light transmission and minimize unwanted reflections.

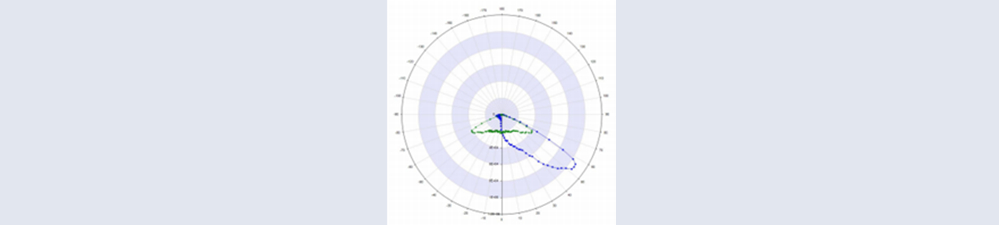

6. Optical Simulation:

Use optical design software to perform ray tracing simulations to visualize and optimize the performance of the lens. This step helps in achieving the desired light distribution and polarization effects.

7. Mechanical Design:

Consider the mechanical aspects of the lens, including how it will be mounted, and sealed. The lens should be designed to be robust and durable.

8. Prototyping and Production:

Once the design is finalized and validated, create prototypes for testing in real-world conditions. After successful testing, proceed with mass production of the LED lenses.

Optical design for polarized LED street light lenses is a complex process that requires expertise in optics and the use of specialized software tools. Collaboration with optical engineers and manufacturers with experience in street lighting is often necessary to ensure a successful design that meets the specific requirements of the project.

We- Brightlx is the BEST CHOICE for your LED optics, our R&D team has also accumulated a lot of project experience in street lighting, can flexibly design LED optics, use light efficiently, and make targeted optical designs according to different scenarios.
